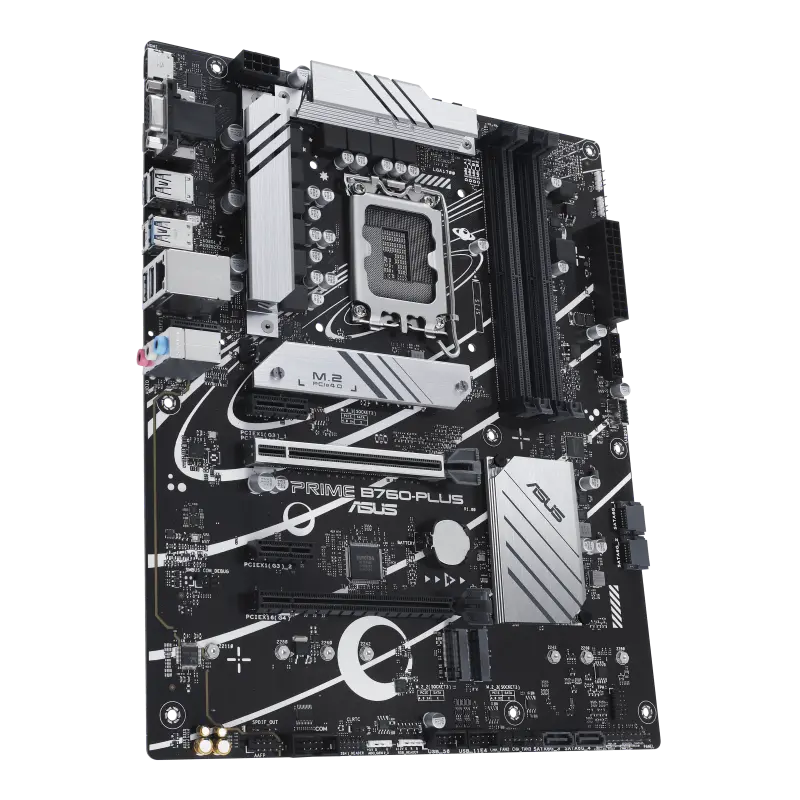

ASUS PRIME B760-PLUS DDR5 Motherboard
ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Barcode:
90MB1EF0-M1EAY0
Specifications
| Motherboard Spec | |
|---|---|
| Motherboard Model | INTEL PRIME B760-PLUS DDR5 |
| Motherboard Form Factor | ATX |
| Motherboard Chipset | INTEL B760 |
| WIFI & Bluetooth | Not Included |
| M.2 Slot | 3 |
| SATA Slot | 4 |
| Fan Spec | |
|---|---|
| RGB Fan Support | ARGB Sync |
| Processore Spec | |
|---|---|
| Socket Type | LGA 1700 |
| Graphic Card Spec | |
|---|---|
| PCIe Express | 5.0 |
| RAM Spec | |
|---|---|
| Ram Type | DDR5 |
| RAM Pack/Socket | 4 |
| Storage Spec | |
|---|---|
| Storage Interface | NVMe PCIe/SATA |
| Power Supply Spec | |
|---|---|
| CPU Power PIN | 8 |
| Watt | 60 |
| Case Spec | |
|---|---|
| Case Form Factor | E-ATX-ATX-MATX |
| Others | |
|---|---|
| Brand | ASUS |
