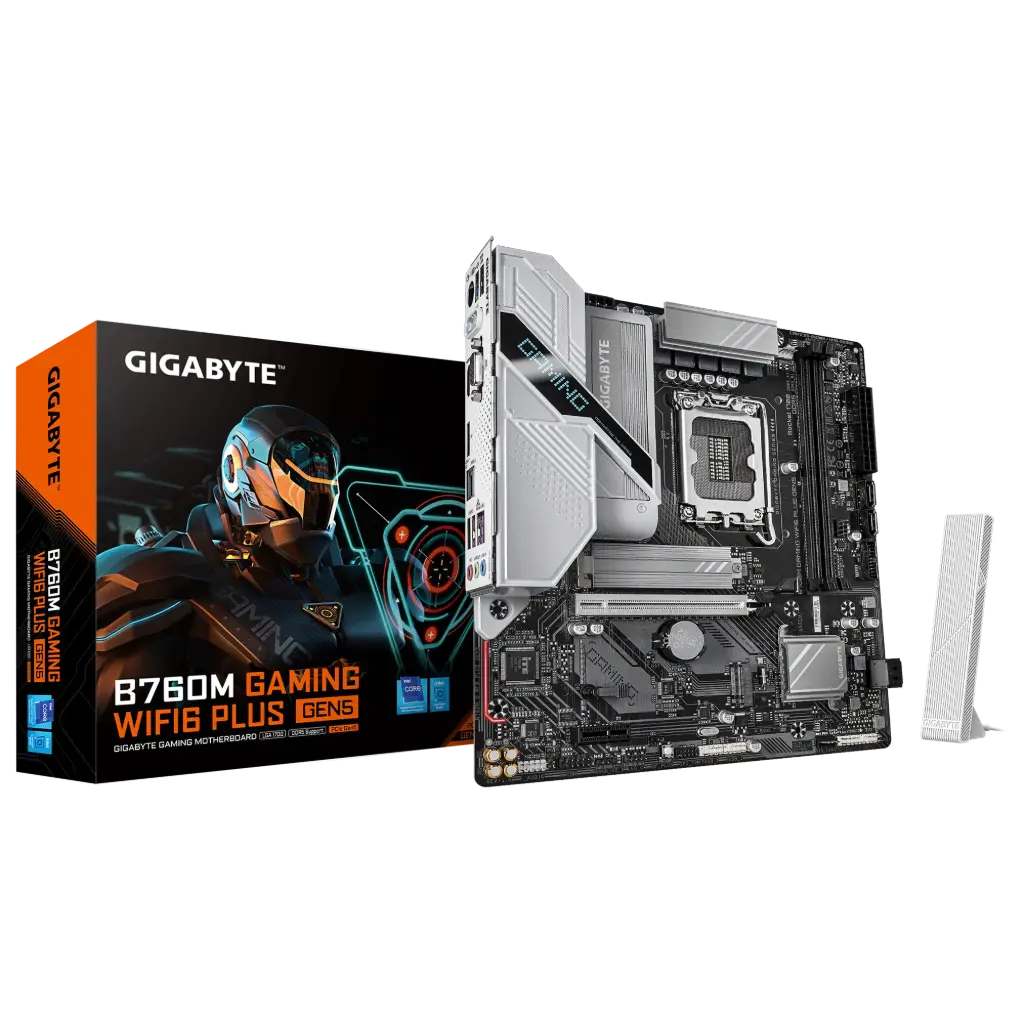

Gigabyte B760M GAMING WiFi6 PLUS GEN5 DDR5 Motherboard
Gigabyte B760M Gaming WiFi6 Plus Gen5 DDR5 Motherboard
A high-performance motherboard from GIGABYTE aimed at gaming enthusiasts, featuring a Micro-ATX design and supporting the latest 12th, 13th, and 14th Gen Intel processors. This motherboard offers the perfect combination of power and stability, with DDR5 memory support and a PCIe 5.0 interface for a smooth, future-proof gaming experience.
Key Features:
Supports 12th, 13th, and 14th Gen Intel processors (LGA 1700).
DDR5 support at high speeds up to 7600MHz (OC) for enhanced performance.
PCIe 5.0 x16 expansion slot for the latest graphics cards.
Ultra-fast storage solutions with M.2 PCIe 4.0 NVMe + SATA ports.
Robust networking thanks to WiFi 6 + Intel 2.5GbE LAN for stable and fast connectivity.
Hi-Res Audio for an immersive experience.
Improved cooling design with heatsinks on the VRM and M.2 slots.
Integrated I/O Shield for easy installation.
Technical Specifications:
Size: Micro-ATX
Socket: Intel LGA 1700
Chipset: Intel B760
Processor Support: Intel 12th, 13th, and 14th Gen
Memory: 4 x DDR5 DIMMs – up to 192GB – up to 7600MHz (OC)
Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4)
Storage: 2 x M.2 PCIe 4.0 NVMe, 4 x SATA 6Gb/s
Network: Intel 2.5Gb LAN + WiFi 6 + Bluetooth 5.3
Rear Ports:
1 x HDMI
1 x DisplayPort
1 x USB-C (10Gbps)
4 x USB-A (Gen1/Gen2)
1 x RJ-45 LAN
3× Audio Jacks
Barcode:
B760M-G-WF6-PLUS-GEN5
Specifications
| Motherboard Spec | |
|---|---|
| Motherboard Model | B760M GAMING WiFi6 |
| Motherboard Form Factor | ATX |
| Motherboard Chipset | Intel® B760 Express |
| WIFI & Bluetooth | BLUETOOTH 5.3 |
| M.2 Slot | 2 |
| SATA Slot | 4 |
| Fan Spec | |
|---|---|
| RGB Fan Support | ARGB Sync |
| Processore Spec | |
|---|---|
| Socket Type | LGA1700 |
| Graphic Card Spec | |
|---|---|
| PCIe Express | 5.0 |
| RAM Spec | |
|---|---|
| Ram Type | DDR5 |
| RAM Pack/Socket | 2 |
| Storage Spec | |
|---|---|
| Storage Interface | NVMe PCIe-SATA |
| Power Supply Spec | |
|---|---|
| CPU Power PIN | 8 |
| Watt | 51 |
| Case Spec | |
|---|---|
| Case Form Factor | E-ATX-ATX-MATX |
| Others | |
|---|---|
| Brand | GIGABYTE |
